liblec::lecui::widgets::widget Class Reference

Base class for all widgets. More...

#include <widget.h>

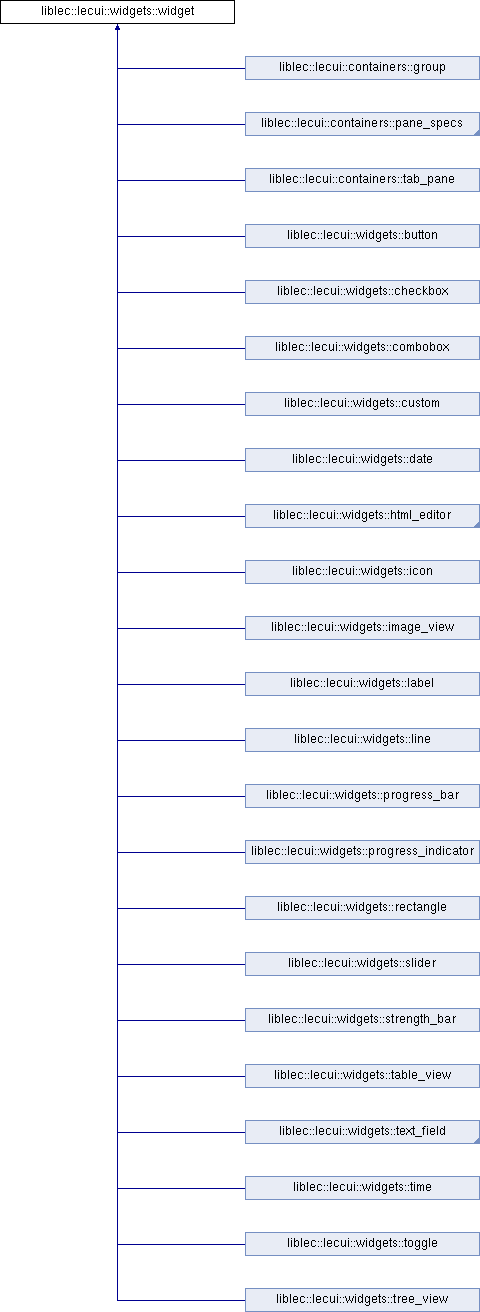

Inheritance diagram for liblec::lecui::widgets::widget:

Classes
struct	basic_events
	Events common to all widgets. More...

Public Types
enum class	cursor_type { arrow , hand , caret }
	Mouse cursor type. More...

Public Member Functions
	widget ()
	Widget constructor.
virtual	~widget ()
	Widget descructor.
bool	operator== (const widget &param)
	Check whether widget's basic specifications are equal. Only those properties that require the widget's basic resources to be re-created are considered. More...
bool	operator!= (const widget &param)
	Check whether widget's basic specifications are NOT equal. Only those properties that require the widget's basic resources to be re-created are considered. More...
virtual std::string &	text ()=0
	Get or set the widget text. More...
virtual std::string &	tooltip ()=0
	Get or set the widget's tooltip text. More...
virtual lecui::rect &	rect ()=0
	Get or set the position and dimensions of the widget. More...
virtual resize_params &	on_resize ()=0
	Get or set the behaviour of the widget when its container is resized. More...
virtual cursor_type &	cursor ()=0
	Get or set the mouse cursor to use then over the widget. More...
virtual std::string &	font ()=0
	Get or set the default widget font, e.g. "Georgia". More...
virtual float &	font_size ()=0
	Get or set the default widget font size in points, e.g. 9.0f. More...
virtual color &	color_text ()=0
	Get or set the color of the widget's text. More...
virtual color &	color_fill ()=0
	Get or set the fill color of the widget. More...
virtual color &	color_hot ()=0
	Get or set the widget's color when the mouse is hovered over it. More...
virtual color &	color_selected ()=0
	Get or set the widget's color when selected. More...
virtual color &	color_disabled ()=0
	Get or set the widget's color when it's disabled. More...
basic_events &	events ()
	Widget events. More...
const std::string &	alias ()
	The widget's alias, either user defined or automatically generated by the library. More...

Protected Attributes
std::string	_text
	The widget's text.
std::string	_tooltip
	The widget's tooltip text.
lecui::rect	_rect
	The widget's rectangle.
resize_params	_on_resize = { 0.f, 0.f, 0.f, 0.f }
	The widget's behaviour when container is resized.
cursor_type	_cursor = cursor_type::arrow
	The widget's cursor.
std::string	_font = "Segoe UI"
	The widget's font.
float	_font_size = 9.f
	The widget's font size.
color	_color_text = { 0, 0, 0, 255 }
	The color of the widget's text.
color	_color_fill = { 0, 120, 170, 255 }
	The fill color of the widget.
color	_color_hot = { 0, 120, 170, 255 }
	The color to indicate when the mouse hovers over the widget.
color	_color_selected = { 0, 120, 170, 30 }
	The color to indicate when the widget is selected.
color	_color_disabled = { 180, 180, 180, 255 }
	The color to indicate when the widget is disabled.

Detailed Description

Base class for all widgets.

Member Enumeration Documentation

cursor_type

enum class liblec::lecui::widgets::widget::cursor_type

strong

Mouse cursor type.

Enumerator
arrow	Arrow cursor. Used in most cases.
hand	Hand cursor. Used to show that an action or link is available over the control.
caret	Caret cursor. Used to show the position in text where the next character will be inserted.

Member Function Documentation

alias()

const std::string & liblec::lecui::widgets::widget::alias ( )

inline

The widget's alias, either user defined or automatically generated by the library.

Returns

The alias.

color_disabled()

virtual color & liblec::lecui::widgets::widget::color_disabled ( )

pure virtual

Get or set the widget's color when it's disabled.

Returns

A reference to the widget's color when disabled.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

color_fill()

virtual color & liblec::lecui::widgets::widget::color_fill ( )

pure virtual

Get or set the fill color of the widget.

Returns

A reference to the widget's fill color.

The use of the fill color varies from widget to widget. Refer to the specific widget's documentation for details.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

color_hot()

virtual color & liblec::lecui::widgets::widget::color_hot ( )

pure virtual

Get or set the widget's color when the mouse is hovered over it.

Returns

A reference to the widget's hover color.

The use of the hover color varies from widget to widget. Refer to the specific widget's documentation for details.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

color_selected()

virtual color & liblec::lecui::widgets::widget::color_selected ( )

pure virtual

Get or set the widget's color when selected.

Returns

A reference to the widget's color when selected.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

color_text()

virtual color & liblec::lecui::widgets::widget::color_text ( )

pure virtual

Get or set the color of the widget's text.

Returns

A reference to the widget's text color.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

cursor()

virtual cursor_type & liblec::lecui::widgets::widget::cursor ( )

pure virtual

Get or set the mouse cursor to use then over the widget.

Returns

A reference to the cursor type as defined in cursor_type.

This is only used if the widget is non-static.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

events()

basic_events & liblec::lecui::widgets::widget::events ( )

inline

Widget events.

Widgets with additional events need to override this method.

Returns

A reference to the widget's basic events.

font()

virtual std::string & liblec::lecui::widgets::widget::font ( )

pure virtual

Get or set the default widget font, e.g. "Georgia".

Returns

A reference to the widget's font name.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

font_size()

virtual float & liblec::lecui::widgets::widget::font_size ( )

pure virtual

Get or set the default widget font size in points, e.g. 9.0f.

Returns

A reference to the widget's font size.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

on_resize()

virtual resize_params & liblec::lecui::widgets::widget::on_resize ( )

pure virtual

Get or set the behaviour of the widget when its container is resized.

Returns

A reference to the resize parameters as defined in resize_params.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

operator!=()

bool liblec::lecui::widgets::widget::operator!=

(

const widget &

param

)

Check whether widget's basic specifications are NOT equal. Only those properties that require the widget's basic resources to be re-created are considered.

Parameters

param

The specs to compare to.

Returns

Returns true if the widget specifications are NOT equal, else false.

operator==()

bool liblec::lecui::widgets::widget::operator==

(

const widget &

param

)

Check whether widget's basic specifications are equal. Only those properties that require the widget's basic resources to be re-created are considered.

Parameters

param

The specs to compare to.

Returns

Returns true if the widget specifications are equal, else false.

rect()

virtual lecui::rect & liblec::lecui::widgets::widget::rect ( )

pure virtual

Get or set the position and dimensions of the widget.

Returns

A reference to the widget rectangle.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

text()

virtual std::string & liblec::lecui::widgets::widget::text ( )

pure virtual

Get or set the widget text.

Returns

A reference to the widget text.

The use of the text varies from widget to widget. Some widgets don't use this field.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

tooltip()

virtual std::string & liblec::lecui::widgets::widget::tooltip ( )

pure virtual

Get or set the widget's tooltip text.

Returns

A reference to the tooltip text.

The tooltip text is displayed when the mouse is hovered over the widget.

Implemented in liblec::lecui::containers::group, liblec::lecui::containers::pane_specs, liblec::lecui::containers::tab_pane, liblec::lecui::widgets::button, liblec::lecui::widgets::checkbox, liblec::lecui::widgets::combobox, liblec::lecui::widgets::custom, liblec::lecui::widgets::date, liblec::lecui::widgets::html_editor, liblec::lecui::widgets::icon, liblec::lecui::widgets::image_view, liblec::lecui::widgets::label, liblec::lecui::widgets::line, liblec::lecui::widgets::progress_bar, liblec::lecui::widgets::progress_indicator, liblec::lecui::widgets::rectangle, liblec::lecui::widgets::slider, liblec::lecui::widgets::strength_bar, liblec::lecui::widgets::table_view, liblec::lecui::widgets::text_field, liblec::lecui::widgets::time, liblec::lecui::widgets::toggle, and liblec::lecui::widgets::tree_view.

---

The documentation for this class was generated from the following file:

• widgets/widget.h
